Home / Products / Generator Termination Cabinet / Docking Station

Pricing
Tables:

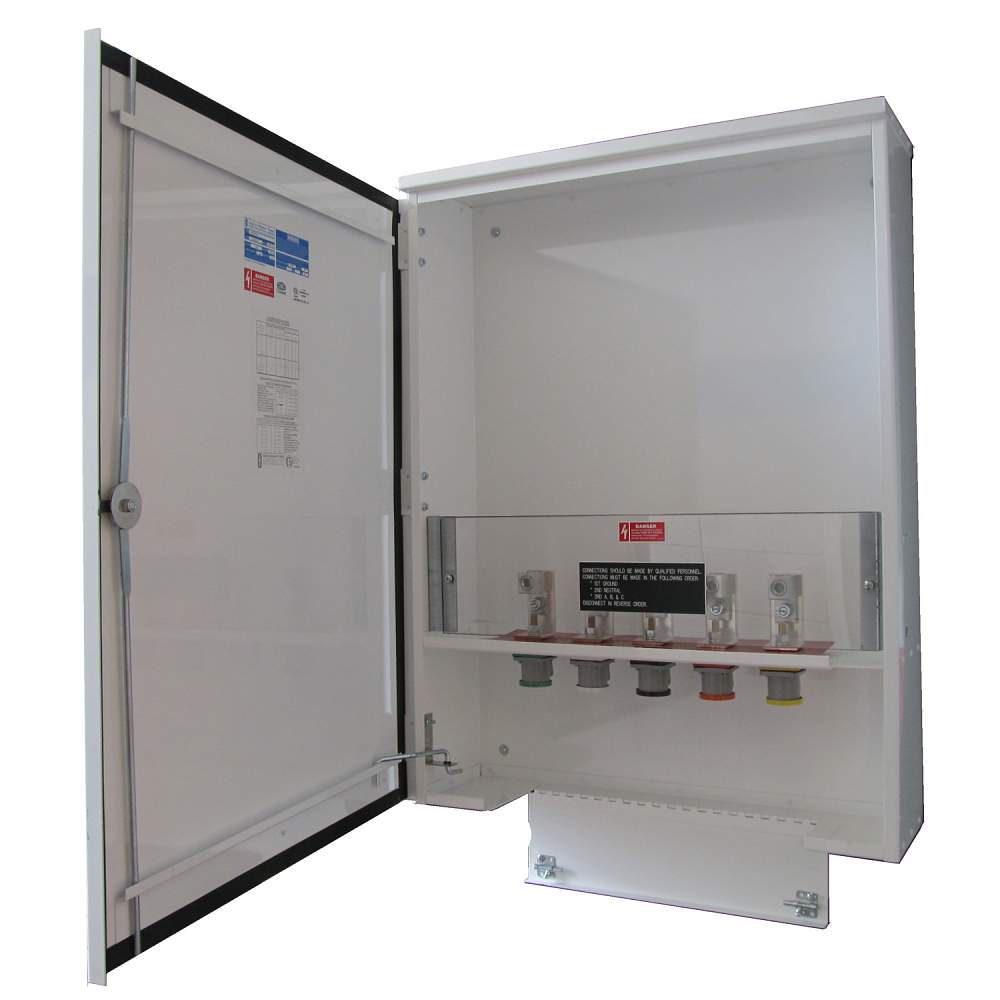

AMP's provides a quick and convenient generator docking station to connect external generator power. Whether it is long or short term utility outage, facility maintenance, or whatever the needs are; AMP's GTC will keep you up and running. Our generator termination cabinets (GTC) are designed to safely connect and disconnect a portable generator to a building or portable piece of equipment. Our generator tap box solutions can also be used to support temporary and emergency power needs and other urgent needs.

  • Ratings are 400 - 3000A, 600 volt, 3 phase 4 wire, 3 phase 3 wire and 1 phase 3 wire, NEMA 1/3R dual rated and Isc ratings of 85KA RMS symmetrical with no cable lashing required. (Please contact factory for higher ratings)
  • Cabinets are either wall mount or free standing and suitable for indoor or outdoor applications.
  • ETL listed and labeled to UL Standards 1773 terminations Cabinets.
  • Cabinets meet all NEMA and NEC code standards.
  • Cabinets provided with electrical grade plated Aluminum or optional plated Copper bus bars.
  • Our GTCDT meets the NEC 700.3 (F) requirements. Contact factory for additional details.
  • Standard Cam-Lok connection information: 480/277V 3 phase 4 wire (green (ground), gray (neutral), brown (A), orange (B), yellow (C))
  • Custom Cam-Lok connection information: 208/120V 3 phase 4 wire (green (ground), white (neutral), black (A), red (B), blue (C))

  • Contact factory for applications with 1200 amp or larger cabinets that require NEC ground fault or Arc Resistance Maintenance Switch (ARMS)

  • Contact factory for pricing on dual purpose generator docking station and company switch options
