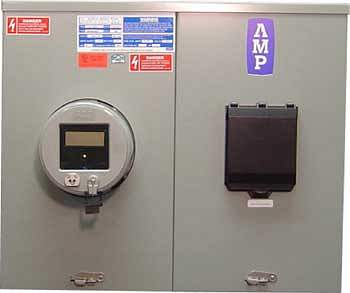

Compact / Competitively Priced Solution For Combination Main Fused Switch And Utility Metering Provision
- Ratings are 100 - 1200 amp 240 and 600 volt, 3 phase 4wire, and 1 phase 3wire, NEMA 1/3R dual rated and Isc ratings of 85KA RMS symmetrical with no cable lashing required. (Please contact factory for higher Ratings)
- All cabinets are surface mounted suitable for indoor or outdoor applications.
- All panels are listed and labeled as per UL 891/414, suitable for service entrance equipment. Cabinets meet all Nema and NEC code standards.
- If used as a Service Disconect on services per NEC 1200 Amp that switches require ground fault protection. This unit will NOT qualify. Consult factory for switch unit with required ground fault protection capabilities.
- Wiring: Line is at the top or bottom and load is always on the opposite end.
