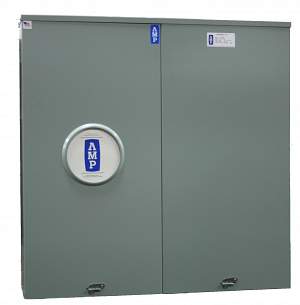

Service Entrance Disconnect
Double Throw Fusible Pull Out Style


  • Double Throw Fusible Switch, Type “T” Current Limiting Fuses with attached Meter Socket and Manual By-Pass.
  • Ratings are 30-400 amp 600 volt, 3 phase 4 wire, and 1 phase 3 wire, NEMA 1/3R dual rated and ISC ratings of 100KA RMS symmetrical with no cable lashing required. (Please contact factory for higher ratings)
  • Safe, Reliable Operation.  Only one service source (normal or standby) can feed the load.
  • Contact Factory for High Inrush Applications – i.e. Motors, Transformers, etc.
  • Made from 16ga Galvaneal steel painted powder painted standard color ASA 61 Gray with tamperproof with lockable covers.
  • Equipment is ETL listed and labeled conforms to UL 414 standards. Equipment meets all NEMA and NEC code standards,Suitable for Service Entrance Equipment.
  • Contact factory for Utility compliance.
