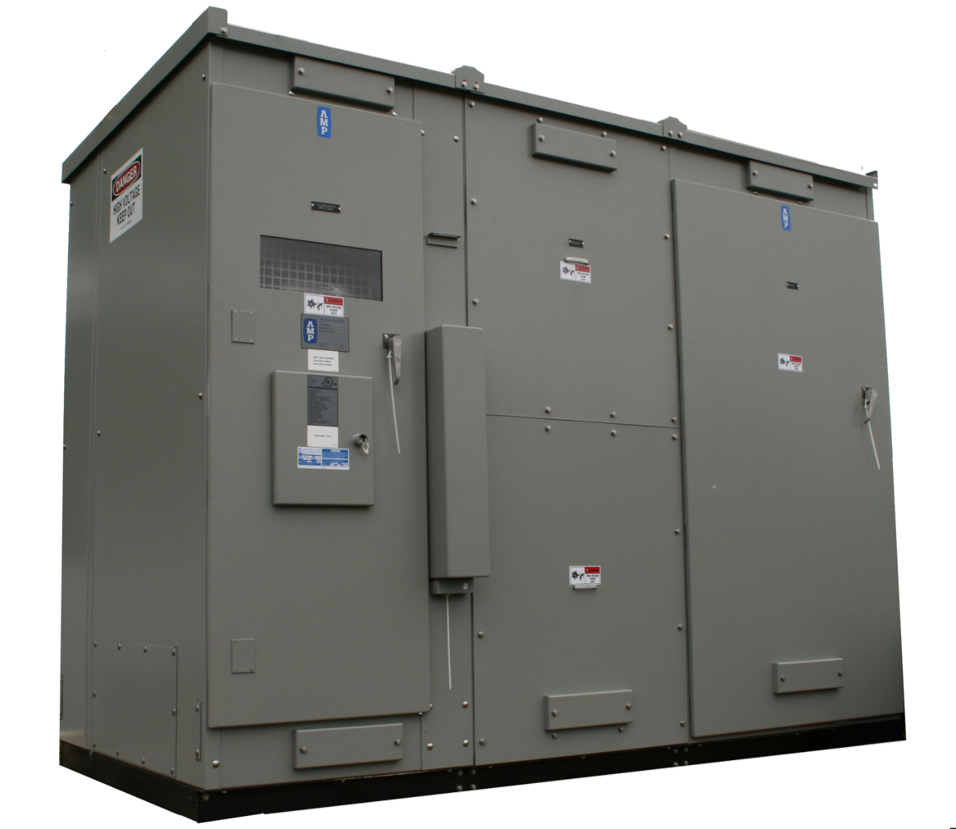

5kv-38kv Medium Voltage Metal Enclosed Switchgear

American Midwest Power's Metal Enclosed Load-Interrupter Switchgear provides a secure, convenient method for switching and overcurrent protection of high-voltage cable systems. The switchgear can be rated NEMA 1 or NEMA 3R for either indoor or outdoor installation.

  • Medium voltage switchgear meets ANSI C57.12.28 enclosure security requirements.
  • 5kV—38kV Custom configurations, special paint.
  • Switches are equipped with a quick-make, quick-break stored-energy mechanism.
  • Individual self-supporting unit with double walls between bays on multi-bay lineups.
  • 600 thru 1200A fused & non-fused load break rated switches.
  • Heavy 11 gauge welded enclosure.
  • Customer metering as well as utility metering provisions are available.
  • Standard manual operating handle may be padlocked in either the open or closed position.
  • Mechanical interlock is provided as standard to prevent opening the door with the switch in the closed position.
