Generator Termination Cabinet

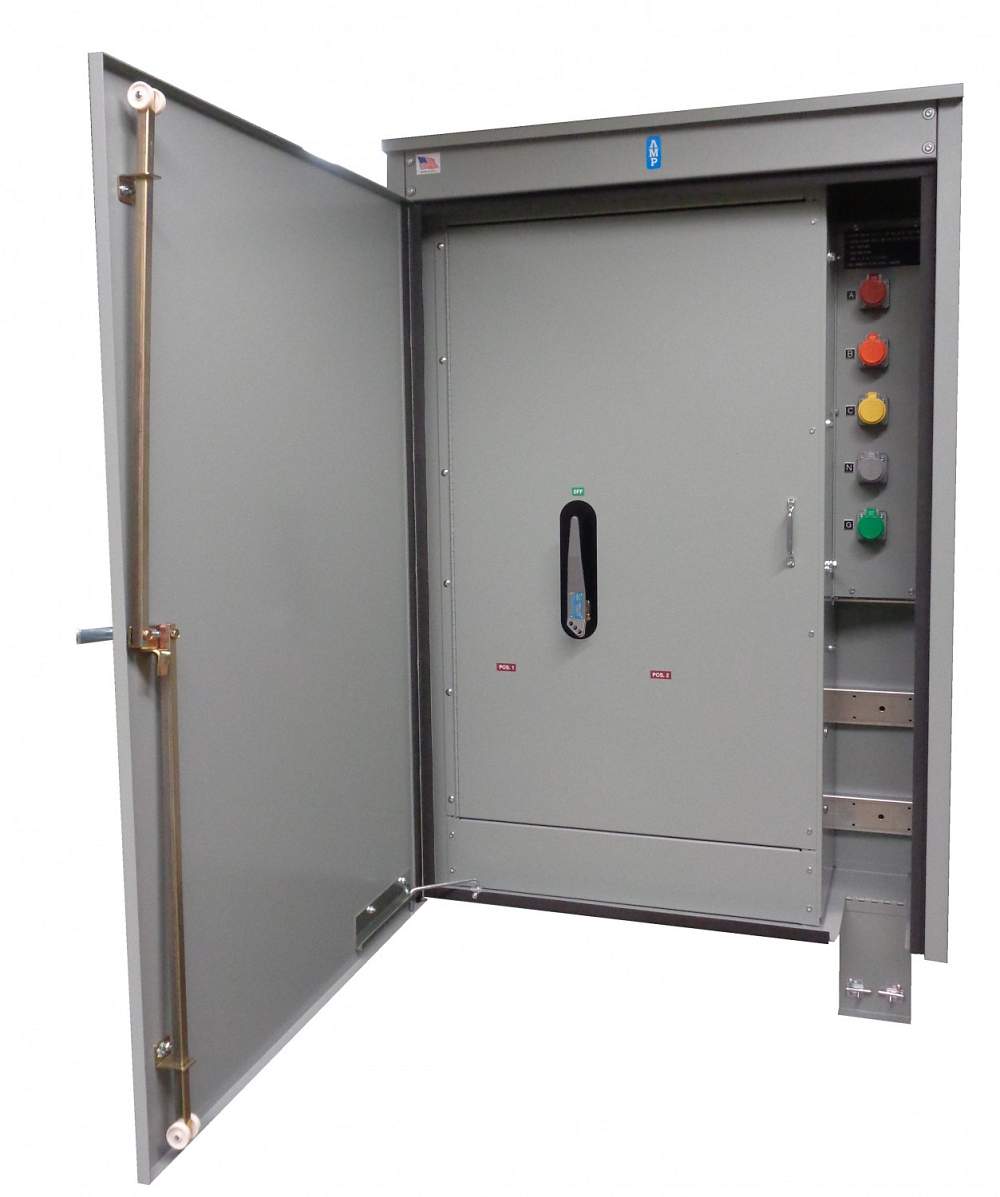

Generator Termination Cabinet Wall Mounted with Manual Transfer Switch & Camlocks

AMP provides a quick and convenient station to connect external generator power, with an integral fused double throw service entrance rated manual transfer switch to safely and easily transfer sources. Whether it is long or short term utility outage, facility maintenance, or whatever the needs are; AMP’s GTCDT will keep you up and running.

  • Ratings are 100 – 3000A, 600V, 3 phase 4 wire, 3 phase 3 wire and 1 phase 3 wire, NEMA 1/3R dual rates and Isc ratings of 85KA RMS symmetrical with no cable lashing required. (Please contact factory for higher ratings.)
  • Cabinets are either wall mount or free standing for indoor or outdoor applications.
  • Our GTCDT meets the NEC 700.3 (F) requirements. Contact factory for additional details.
  • Auxilliary contacts 1 set
  • UL listed and labeled to UL standards 891.
  • Cabinets meet all NEMA and NEC code standards.
  • Cabinets provided with electrical grade plated Aluminum or option plated Copper bus bars.
  • Contact factory for applications with 1200 amp 480 volt and greater, requiring NEC ground fault
 Generator Termination Cabinets Wall Mounted w/ Manual Transfer Switch & Camlocks
Total Amp Rating 600 Volt / 3 Phase - 4 Wire 250 Volt / 1 Phase - 3 Wire Normal Load Lugs Req'D Per PH N & G
L=(Lugs Included) / C=(CAMLOCKS)
Cat. No. List Price Cat. No. List Price
100 GTCDTWC1-4C 7,190.00 GTCDTWC1-3A 6,990.00 1L/1C
200 GTCDTWC2-4A 9,940.00 GTCDTWC2-3A 9,440.00 1L/1C
400 GTCDTWC4-4A 10,090.00 GTCDTWC4-3A 9,590.00 1L/1C
600 GTCDTWC6-4C 12,308.00 GTCDTWC6-3C 11,560.00 2L/2C
Generator Termination Cabinets Pad Mounted w/ Manual Transfer Switch & Camlocks
Total Amp Rating 600 Volt / 3 Phase - 4 Wire 250 Volt / 1 Phase - 3 Wire Normal Load Lugs Req'D Per PH N & G
L=(Lugs Included) / C=(CAMLOCKS)
Cat. No. List Price Cat. No. List Price
600 GTCDTPC6-4A 13,300.00 GTCDTPC6-3A 12,700.00 2L/2C
800 GTCDTPC8-4A 19,700.00 GTCDTPC8-3A 19,070.00 2L/2C
1200 GTCDTPC12-4A 23,640.00 GTCDTPC12-3A 22,750.00 4L/3C
1600 GTCDTPC16-4A 28,930.00 GTCDTPC16-3A 27,780.00 5L/4C
2000 GTCDTPC20-4A 32,780.00 GTCDTPC20-3A Contact Factory 6L/5C
2500 GTCDTPC25-4A 38,570.00 GTCDTPC25-3A Contact Factory 7L/7C
3000 GTCDTPC30-4A 47,915.00 GTCDTPC30-3A Contact Factory 8L/8C
  • Contact Factory for available options
           - Single Phase
           - 4 pole switched neutrals
  • UL listed and labeled to UL standards 891
