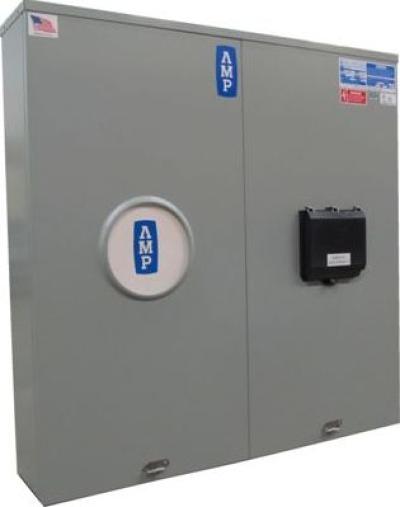

Combo-Metering / Single Main
Compact / Competitively Priced Solution, single enclosure saves space and labor.
•Ratings are 30-400 amp 600 volt, 3 phase 4 wire, and 1 phase 3 wire, NEMA 1/3R dual rated and ISC ratings of 100KA RMS symmetrical with no cable lashing required. (Please contact factory for higher ratings)
•Hot or Cold sequence metering options are available.
•Surface mounted, suitable for indoor, outdoor applications.
•Made from 16ga Galvaneal steel powder painted standard color ASA 61 Gray with tamperproof with lockable covers.
•Equipment is ETL listed and labeled conforms to UL 414 standards. Equipment meets all NEMA and NEC code standards,Suitable for Service Entrance Equipment.
•Horizontal and Vertical configuration available both with top or bottom feed options.
•Contact factory for Utility compliance.
