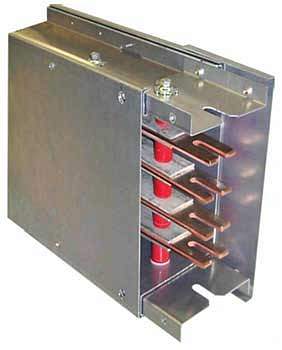

QB Busway

QUICK TO MARKET, LIGHT WEIGHT EASY TO INSTALL FOR ALL CUSTOM BUSWAY APPLICATIONS

See product category bar (at left) for standard product offerings

ALUMINUM HOUSING PROVIDES
* LOWER VOLTAGE DROP
* 100% GROUND BUS
* SAME EXPANSION RATE AS BUS BAR
* 20% LIGHTER WEIGHT

• Indoor totally enclosed or ventilated busway
• Robust busway design utilizes air insulated construction.
• Up to 6,000 Amp 600V 3 phase 4 wire, 3 phase 3 wire, 1 phase 3 wire & 2 wire
• 85,000 amps rms symmetrical rating minimum on all busway without over current protection required.
• Feeder bus duct is convertible to plug-in.
• Universal ends with bolted connections at all joints.

Feeder Busway

600V Indoor / Outdoor
Feeder Busway — Short Run Design Busway

• Copper or aluminum bus bar, totally enclosed, feeder short run design busway.
• Robust feeder short run design busway utilizes air insulated construction.
• Up to 4,000 Amp 600V 3 phase 4 wire, 3 phase 3 wire, 1 phase 3 wire & 2 wire.
• 85,000 Amps RMS symmetrical rating minimum on all SR busway without over current protection being required.
• SR busway replaces pipe and wire for Service Entrance feeder applications.
• For use as feeder busway only.
• For NEMA Type 1 indoor and 3R outdoor applications.
